High temperature
protective canvas ,
sleeve & insulating blanket
Apronor >
A specialist in technical textiles, Apronor designs high temperature protective fabrics, cuffs and insulating blankets.
Adapting to all configurations, our range consists of several products. Made from technical textiles, including caramelized or polyurethane coated glass fabric, needle felt and silica glass, they offer you very good protection. Likewise, they are resistant to high temperatures. As such, they can be used during welding, grinding, or to insulate cables, pipes, or to protect personnel and sensitive areas.
High temperature protective fabric
Apronor manufactures a wide range of anti-heat fabrics with high temperature resistance up to 1200 ° C. Made in France and M0 certified, anti-heat cloths are generally used for the protection of sensitive areas during grinding, welding, etc. Heat shields regulate the cooling of welding materials and protect personnel from accidents.
550°C heat shield
The 550°C heat-resistant fabrics are composed of either caramelized glass fabrics or polyurethane coated glass fabrics for vertical uses. M0 certified, they protect sensitive areas against incandescent projections and heat to avoid damage inherent to projections as well as the risk of fire.
- Raincoat
- Fire retardant
- Halogen free
- High temperature resistance
- Welding
- Grinding
- Protection of sensitive areas
TECHNICAL CHARACTERISTICS
- Material: Caramelized glass fabrics
- Color: Caramelized
- Use: Vertical
- Weight (g/m²): 635
- Thickness (mm): 1
| Reference | Dimensions (m) | Packaging |
| 3836FI016100 | 1X50 | Rouleau / Roll |
| 3836FI016200 | 2X50 | Rouleau/ Roll |
| C3836FI0161X1D | 1X1 | Unité/ Unit |
| C3836FI0161X2D | 1X2 | Unité/ Unit |
| C3836FI0162X2D | 2X2 | Unité/ Unit |
| C3836FI0162X3D | 2X3 | Unité/ Unit |
| C3836FI0163X3D | 3X3 | Unité/ Unit |
| C3836FI016SMED | SME | M² |
TECHNICAL CHARACTERISTICS
- Material: Polyurethane coated glass fabrics
- Color: Mouse gray:
- Use: Vertical
- Weight (g/m²): 430
- Thickness (mm): 0.4
| Référence | Dimension (m) | Packaging |
| 3200-1-SP100 | 1X50 | Rouleau / Roll |
| 3200-1-SP200 | 2X50 | Rouleau/ Roll |
| C32001SP1X1B(D) | 1X1 | Unité/ Unit |
| C32001SP1X2B(D) | 1X2 | Unité/ Unit |
| C32001SP2 X2B(D) | 2X2 | Unité/ Unit |
| C32001SP2 X3B(D) | 2X3 | Unité/ Unit |
| C32001SP3X3B(D) | 3X3 | Unité/ Unit |
| C32001SPSMEB(D) | SME | M² |
650°C heat shield
The 650°C anti-heat fabrics are made of polyurethane coated glass fabrics for vertical and horizontal uses. They protect sensitive areas against incandescent projections and heat to avoid damage inherent to projections as well as the risk of fire.
- Raincoat
- Fire retardant
- Halogen free
- High temperature resistance
- Welding
- Grinding
- Protection of sensitive areas
- Operator protection
TECHNICAL CHARACTERISTICS
- Material: Polyurethane coated glass fabrics
- Color: Mouse gray
- Use: Vertical/Horizontal
- Weight (g/m²): 660
- Thickness (mm): 0.7 mm
| Reference | Dimensions (m) | Packaging |
| 3800-1-SP100 | 1X50 | Rouleau / Roll |
| 3800-1-SP200 | 2X50 | Rouleau/ Roll |
| C38001SP1X1B(D) | 1X1 | Unité/ Unit |
| C38001SP1X2B(D) | 1X2 | Unité/ Unit |
| C38001SP2X2B(D) | 2X2 | Unité/ Unit |
| C38001SP2X3B(D) | 2X3 | Unité/ Unit |
| C38001SP3X3B(D) | 3X3 | Unité/ Unit |
| C38001SPSMEB(D) | SME | M² |
Anti-heat fabric 900°C
The 900 ° C heat resistant fabrics are made of polyurethane coated glass fabrics for horizontal use. They protect sensitive areas against incandescent projections and heat to avoid damage inherent to projections as well as the risk of fire.
- Raincoat
- Fire retardant
- Halogen free
- Very high temperature resistance
- Welding
- Grinding
- Protection of sensitive areas
- Operator protection
TECHNICAL CHARACTERISTICS
- Material: Polyurethane coated glass fabrics
- Color: Mouse gray
- Use: Horizontal
- Weight (g/m²): 1120
- Thickness (mm): 1 .4
| Reference | Dimensions (m) | Packaging |
| 5099-2-SP100 | 1X50 | Rouleau / Roll |
| 5099-2-SP200 | 2X25 | Rouleau/ Roll |
| C50992SP1X1B(D) | 1X1 | Unité/ Unit |
| C50992SP1X2B(D) | 1X2 | Unité/ Unit |
| C50992SP2X2B(D) | 2X2 | Unité/ Unit |
| C50992SP2X3B(D) | 2X3 | Unité/ Unit |
| C50992SP3X3B(D) | 3X3 | Unité/ Unit |
| C50992SPSMEB(D) | SME | M² |
Anti-heat fabric 1200°C
The 1200°C anti-heat fabrics are made of ultra-resistant glass or silica fabrics for horizontal use. They protect sensitive areas against incandescent projections and heat to avoid damage inherent to projections as well as the risk of fire.
- Raincoat
- Fire retardant
- Halogen free
- Very high temperature resistance
- Welding
- Grinding
- Protection of sensitive areas
- Operator protection
TECHNICAL CHARACTERISTICS
- Material: Vermiculite coated silica fabrics
- Color: Caramelized
- Use: Horizontal
- Weight (g/m²) : 600
- Thickness (mm) : 0.8
| Reference | Dimensions (m) | Packaging |
| TSFI600920 | 0,92X50 | Rouleau / Roll |
| CTSF6000.9X1D | 0,9X1 | Unité/ Unit |
| CTSFI6000.9X2D | 0,9X2 | Unité/ Unit |
| CTSFI6001.8X2D | 1,8X2 | Unité/ Unit |
| CTSFI6001.8X3D | 1,8X3 | Unité/ Unit |
| CTSFI6002.7X3D | 2,7X3 | Unité/ Unit |
| CTSFI600SMED | SME | MI |
TECHNICAL CHARACTERISTICS
- Material: Vermiculite coated silica fabrics
- Color: Caramelized
- Use: Horizontal
- Weight (g / m²): 1120
- Thickness (mm): 1.4
| Reference | Dimensions (m) | Packaging |
| TSFI1120920 | 0,92X50 | Rouleau / Roll |
| CTSFI11200.9X1D | 0,9X1 | Unité/ Unit |
| CTSFI11200.9X2D | 0,9X2 | Unité/ Unit |
| CTSFI11201.8X2D | 1,8X2 | Unité/ Unit |
| CTSFI11201.8X3D | 1,8X3 | Unité/ Unit |
| CTSFI11202.7X3D | 2,7X3 | Unité/ Unit |
| CTSFI1120SMED | SME | MI |
TECHNICAL CHARACTERISTICS
- Material: Felt welding protect
- Color: black
- Use: Horizontal
- Weight (g / m²): 500
- Thickness (mm): 5
| Reference | Dimensions (m) | Packaging |
| FAPA450/05 200 | 2X50 | Rouleau/Rol l |
| CFAPA4501X1B(D) | 1X1 | Unité/Unit |
| CFAPA4501X2B(D) | 1X2 | Unité/Unit |
| CFAPA4502X2B(D) | 2X2 | Unité/Unit |
| CFAPA4502X3B(D) | 2X3 | Unité/Unit |
| CFAPA4503X3B(D) | 3X3 | Unité/Unit |
| CFAPA450SMEB(D) | SME | M² |
M1 tarpaulin
The M1 Apronor tarpaulin is made from PVC coated glass fabric. M1 fabric has excellent technical characteristics capable of stopping the spread of flames.
- Combustible – non-flammable
- Fire resistance
- Fire safety,
- Protection of sensitive areas
- Operator protection
TECHNICAL CHARACTERISTICS
- Material: PVC coated glass fabrics
- Color: Mouse gray
- Use: Tarpaulin
- Weight (g / m²): 650
- Thickness (mm): 0.65
| Reference | Dimensions (m) | Packaging |
| 5200-2-PVS200 | 2X50 | Rouleau/ Roll |
| C52002PVS1X1B | 1X1 | Unité/ Unit |
| C52002PVS2X2B | 2X2 | Unité/ Unit |
| C52002PVS2X3B | 2X3 | Unité/ Unit |
| C52002PVSSMEB(D) | SME | M² |
Isothermal sleeves and blankets are used in emergency or high heat situations to reduce heat loss and control the cooling of welds on pipelines.
Insulating sleeve
The Insulating sleeve ensures control of the cooling of parts after welding to avoid direct and accidental contact with hot objects. The Apronor insulating cuff is made of a glass fabric, a needle felt and fitted with Velcro to adapt to the objects it surrounds.
- Cooling control of hot objects
- Decrease in heat loss
- Operator protection
- Welding
- Grinding
- Protection of objects at high temperature
- Handling of superheated molten metals
TECHNICAL CHARACTERISTICS
- Material: Glass fabrics & Needle felt
- Color: Caramelized & Blue
- Use: Welding cooling
| Reference | Thickness (mm) | Dimensions (mm) | Packaging |
| MI1053 | 30 | 500 X 1000 | Unité/ Unit |
| MI1553 | 30 | 500 X 1500 | Unité/ Unit |
| MI2053 | 30 | 500 X 2000 | Unité/ Unit |
| MISME | 30 | SME | Unité/ Unit |
Insulating blanket
The insulating blanket provides cooling control of parts after welding to prevent direct and accidental contact with hot objects. The Apronor insulating blanket is composed of a glass fabric and a needle felt.
- Cooling control of hot objects
- Decrease in heat loss
- Operator protection
- Welding
- Grinding
- Protection of objects at high temperature
- Handling of superheated molten metals
TECHNICAL CHARACTERISTICS
- Material: Glass fabrics & Needle felt
- Color: Caramelized & Blue
- Use: High temperature protection
| Reference | Thickness (mm) | Dimensions (mm) | Packaging |
| CI1013 | 30 | 1000 X 1000 | Unité/ Unit |
| CI1023 | 30 | 1000 X 2000 | Unité/ Unit |
| CI2023 | 30 | 2000 X 2000 | Unité/ Unit |
| CISME | 30 | SME | Unité/ Unit |
Cooling cloth
The apronor cooling cloth regulates the decrease in the temperature of the parts after welding to avoid direct and accidental contact with hot objects. The apronor cooling cloth is made of a caramelized glass fabric.
- Flexible
- High temperature resistance
- Operator protection
- Operator protection
- Welding protection against scratching and grinding sparks
TECHNICAL CHARACTERISTICS
- Material: Caramelized glass fabrics
- Color: Caramelized
- Use: Cooling cloth
- Weight (g/m²): 1000
- Thickness (mm): 1.2
| Reference | Dimensions (mm) | Packaging |
| 5099FI016 100 | 1X50 | Rouleau/ Roll |
| 5099FI016 150 | 1.5X50 | Rouleau/ Roll |
| C5099FI0161X1D | 1X1 | Unité/ Unit |
| C5099FI0161X2D | 1X2 | Unité/ Unit |
| C5099FI0162X2D | 2X2 | Unité/ Unit |
| C5099FI0162X3D | 2X3 | Unité/ Unit |
| C5099FI0163X3D | 3X3 | Unité/ Unit |
| C5099FI016SMED | SME | M ² |
Removable protective sheath
The removable protective sleeve is a thermal protective sleeve made from a polyurethane coated glass fabric. It is generally used for the protection of cables and harnesses under high temperature conditions.
- Flexible
- High temperature resistance
- Radiant heat resistance
- Pipe insulation
- Thermal insulation of cables
- Wire protection exposed to heat
TECHNICAL CHARACTERISTICS
- Material: Polyurethane coated glass fabrics
- Color: Mouse Gray
- Use: Protection cable
| Reference | Weight (g/m²) | Dimensions | Pack. |
| GPA50992SP20010 | 1120 | 0 . 2 X 10 ml | Unité/ Unit |
| GPA50992SP20020 | 1120 | 0 . 2 X 20 ml | Unité/ Unit |
| GPA50992SP2SME | 1120 | SME | Unité/ Unit |
TECHNICAL CHARACTERISTICS
- Material: Caramelized glass fabrics
- Color: Caramelized
- Use: Protection cable
| Reference | Weight (g/m²) | Dimensions | Pack. |
| GPA5099FI01620010 | 1050 | 0 . 2 X 10 ml | Unité/ Unit |
| GPA5099FI01620020 | 1050 | 0 . 2 mm X 20 ml | Unité/ Unit |
| GPA5099FI016SME | 1050 | SME | Unité/ Unit |
POSSIBLE FINISHES
Apronor offers two types of flame arrestors to provide better protection during flame welding activities. Flame arresters are generally used for the protection of work areas (walls, floors) and protect against flame and heat when brazing and welding materials.

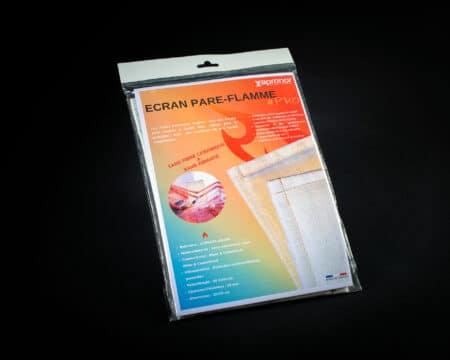

Flame arrestor screen
Double heat shields are double sided solder shields used for protection under very high temperature conditions.
- Ceramic fiber & asbestos free
- Adaptation to any workspace
- Temperature resistance up to 1400ºC
- No danger associated with its use
- Solder
- Welding
- Protection of materials and elements exposed to the impact of the flame
TECHNICAL CHARACTERISTICS
- Material: Felt welding protect
- Color: black
- Use: Welding protection
| Reference | Weight (g/screen) | Thickeness (mm) | Dimensions (cm) |
| ECRFAPA/200.290 | 35 | 5 | 20 X 29 |
Pro flame screen
Double heat shields are double sided solder shields used for protection under very high temperature conditions.
- Ceramic fiber & asbestos free
- Adaptation to any workspace
- Temperature resistance up to 1400ºC
- No danger associated with its use
- Solder
- Welding
- Protection of materials and elements exposed to the impact of the flame
TECHNICAL CHARACTERISTICS
- Material: Silica glass
- Color: White & Caramelized
- Use: Welding protection
| Reference | Weight (g/écran) | Thickeness (mm) | Dimensions (cm) |
| ECRFAPA/200.290 | 90 | 10 | 20 X 29 |
Allows effective action against noise pollution on construction sites and events; it helps to minimize noise emissions in sensitive environments: proximity to residential and / or commercial districts. Easy to use, light and flexible, easy to set up. The materials included in the composition of the acoustic barrier are treated non-fire.
Acoustic cover
Apronor offers acoustic tarpaulins used for sound insulation on site. Apronor acoustic tarpaulins reduce noise during work up to 38 Db. They are used in the building, public works, roads, industry, etc. sectors of activity.
- Sound reduction up to 38Db
- Hydrophobic
- Fire retardant
- Customizable
- Noise reduction
Weight
Thickness
Height
Width
Noise reduction
SPECIFICATIONS
- Colors: black
- Top layer (front): PVC M2 coated polyester fabric (according to NFP92-507 standard); UV protection and fungicide; 680 gr / m²; breaking strength 260/250 daN; tear resistance 32/28 daN; cold resistance -30 ° C
- Bottom layer (back): black glass fabric, A2-s1, d0 anti-fraying treatment (according to standard EN 13-501-1); 212gr / m²; tensile strength in chain 500 N / cm, in weft 350 N / cm
- Couche interne : feutre de protection (fibres textiles et polyester) 1200 gr/m² ; ep. 40 mm
- Hems and eyelets all around
- Tolerance of +/- 10% on the dimensions and thicknesses offered.
Other dimensions available on request
| Frequency (Hz) | IL (dB) |
| 400 | 0,51 |
| 500 | 0,72 |
| 630 | 0,85 |
| 800 | 1,04 |
| 1000 | 1,02 |
| 1250 | 0,95 |
| 1600 | 0,79 |
| 2000 | 0,7 |
| 2500 | 0,62 |
| 3150 | 0,58 |
| 4000 | 0,5 |
| 5000 | 0,51 |
| 6300 | 0,5 |
| 8000 | 0,49 |
| 10000 | 0,54 |
| Frequency (Hz) | IL (dB) |
| 100 | 4,3 |
| 125 | 3,7 |
| 160 | 2,5 |
| 200 | 3 |
| 250 | 9,3 |
| 315 | 9 |
| 400 | 11,3 |
| 500 | 18 |
| 630 | 9,5 |
| 800 | 6,4 |
| 1000 | 15,9 |
| 1250 | 16,1 |
| 1600 | 20 |
| 2000 | 20,2 |
| 2500 | 24,4 |
| 3150 | 27,5 |
| 4000 | 30,4 |
| 5000 | 29,9 |
| 6300 | 33,7 |
| 8000 | 33,6 |
| 10000 | 38,3 |
Noise pollution on site is defined by: Articles R 1334-36 of the public health code. Articles R 1334-31 and R 1337-7 of the public health code for worksites that do not require special authorization.
Need a drop cloth, sleeve and insulating blanket?
